Parametric Knob Maker for OpenSCAD

Parametric thumbscrew knobs come up often enough in 3D printing projects that it is worth having a reusable library for them. This post covers a fork of aminGhafoory/parametric-knob-maker that adds a generalised round knob module. The fork is at morganp/parametric-knob-maker.

The library was used to generate the thumbscrew knob in the pinch rods post.

Installation

Clone or download the repository into your OpenSCAD libraries folder:

~/.local/share/OpenSCAD/libraries/     (Linux)
~/Documents/OpenSCAD/libraries/        (macOS)
My Documents\OpenSCAD\libraries\       (Windows)

The knob() Module

File: parametric_knob.scad

The round knob has a narrower offset base for mounting clearance, chamfered top and bottom edges, and equally-spaced cylindrical grip cutouts around the perimeter. Z=0 is at the base, making it straightforward to position on top of a screw shaft.

include <parametric-knob-maker/parametric_knob.scad>

knob(
    knob_height,       // height of the main knob body         (default: 15)
    knob_diam,         // diameter of the main knob body       (default: 30)
    offset_height,     // height of the narrower base section  (default: 5)
    offset_diam,       // diameter of the base section         (default: knob_diam/2)
    knob_chamfer,      // top edge chamfer depth at 45 deg     (default: 2)
    base_chamfer,      // base edge chamfer depth at 45 deg    (default: 1)
    num_grip_cutouts,  // number of finger grip cutouts        (default: 15)
    grip_cutout_diam,  // diameter of each grip cutout         (default: 4)
    cutout_radius_adj, // outward offset of cutout centres     (default: 1)
    knob_color         // preview colour                       (default: "red")
);

Default knob

include <parametric-knob-maker/parametric_knob.scad>
knob();

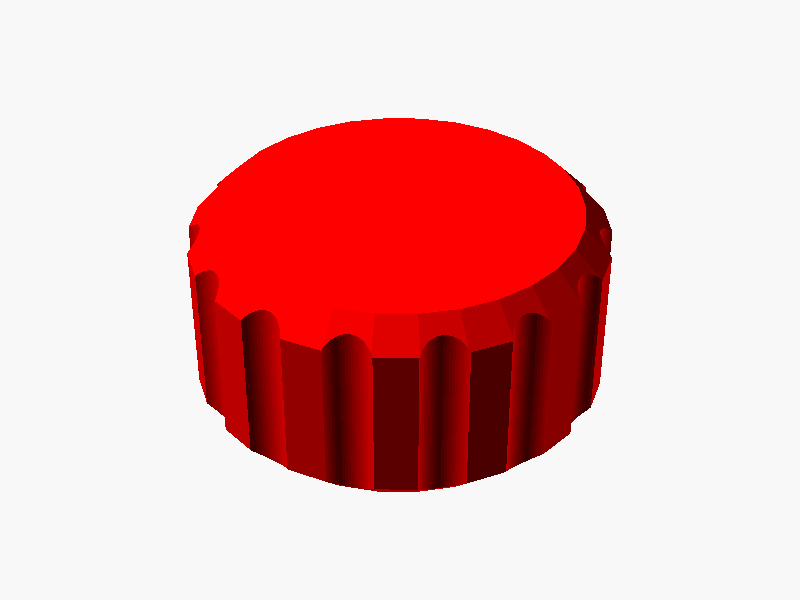

Default knob -- 30mm diameter, 15mm tall, 15 grip cutouts

Small thumbscrew knob

Compact knob for M3/M4 screws where finger space is limited.

include <parametric-knob-maker/parametric_knob.scad>
knob(knob_height=8, knob_diam=20, offset_height=2);

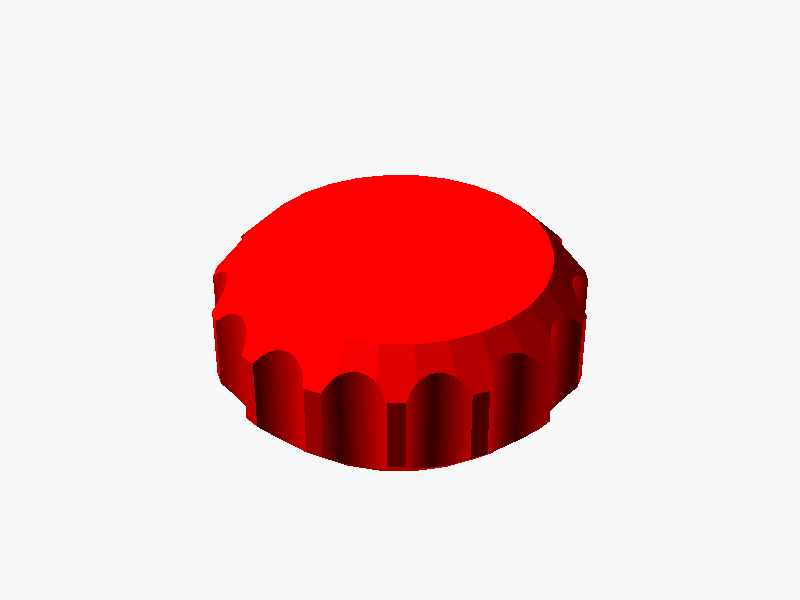

Small knob -- 20mm diameter, 8mm tall

Large adjustment knob

Wider knob with more cutouts for applications needing higher torque or finer control.

include <parametric-knob-maker/parametric_knob.scad>
knob(
    knob_height      = 20,
    knob_diam        = 50,
    num_grip_cutouts = 20,
    grip_cutout_diam = 6,
    knob_color       = "SteelBlue"
);

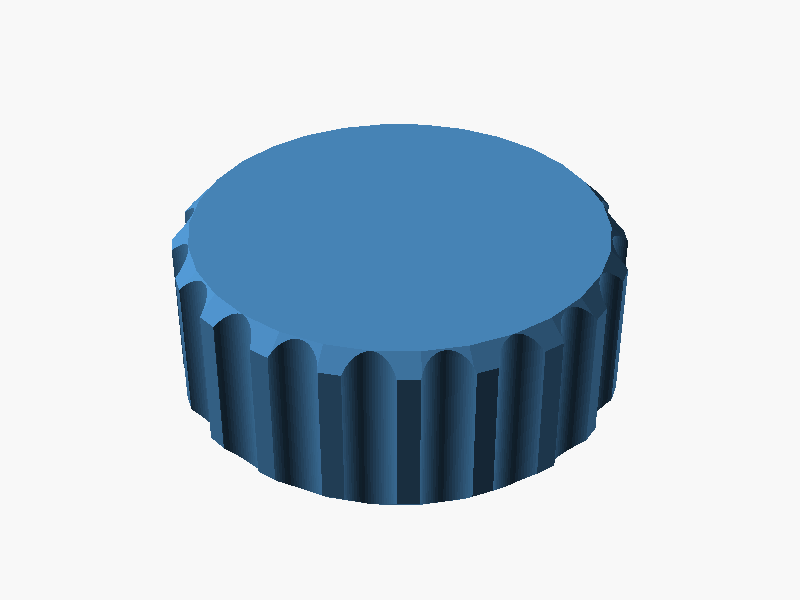

Large knob -- 50mm diameter, 20mm tall, 20 grip cutouts

Slim base

A narrow offset base minimises the footprint on the mounting surface -- useful when the knob sits close to a panel or bracket.

include <parametric-knob-maker/parametric_knob.scad>
knob(
    knob_height   = 15,
    knob_diam     = 35,
    offset_height = 2,
    offset_diam   = 10,
    knob_color    = "DarkOrange"
);

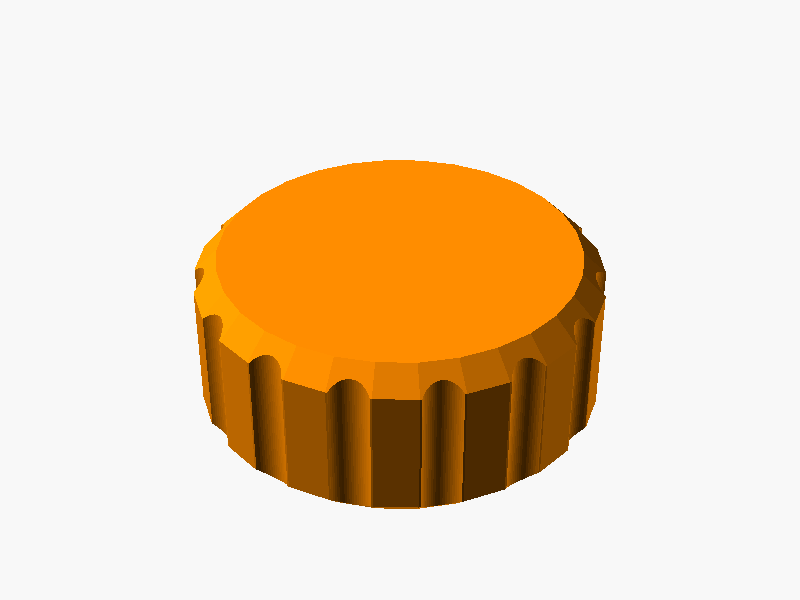

Slim base knob -- 35mm diameter with narrow 10mm base

Combining with a BOSL2 screw

The knob() module pairs neatly with BOSL2's screw() to produce a complete thumbscrew assembly. Place the screw with anchor=BOTTOM so the thread points downward, then translate the knob up to sit on top of the shaft.

include <parametric-knob-maker/parametric_knob.scad>
include <BOSL2/std.scad>
include <BOSL2/screws.scad>

THREAD_LEN = 12;

union() {
    screw(spec="M5", length=THREAD_LEN+1, thread=true, anchor=BOTTOM);
    translate([0, 0, THREAD_LEN])
        knob(knob_height=10, offset_height=1);
}

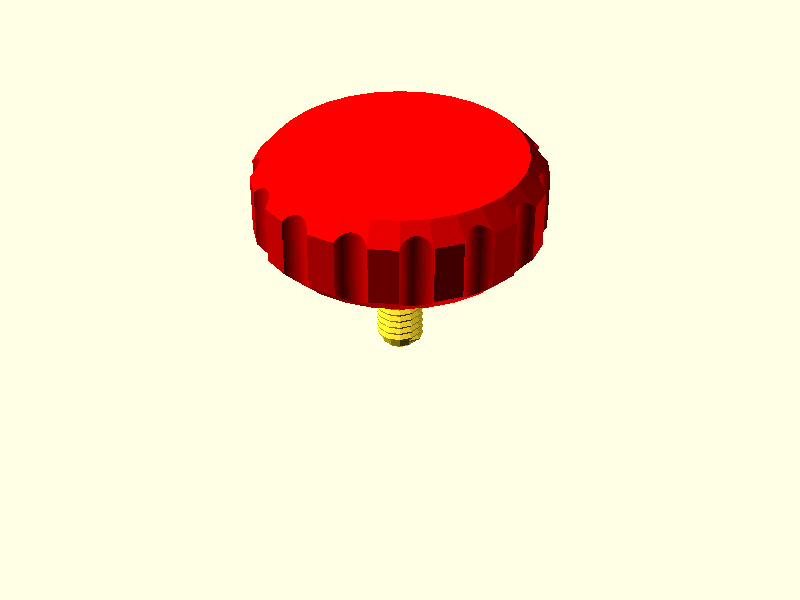

Thumbscrew assembly -- knob with M5 threaded shaft below

The hex_knob() Module

File: parametric_hex_knob.scad

The hex knob is intended to capture a hex-head bolt in its base recess and provide a through-hole for the shaft, removing the need for any additional fastener. The hex screw recess is currently under development and commented out -- the module renders the knob body and grip cutouts only.

include <parametric-knob-maker/parametric_hex_knob.scad>

hex_knob(
    knob_height,          // height of the knob body           (default: 15)
    knob_diam,            // diameter of the knob              (default: 30)
    screwhead_facetoface, // hex head face-to-face size (mm)   (default: 8)
    screwhead_depth,      // depth of hex recess               (default: 12)
    thru_hole_diam,       // through-hole diameter             (default: 4)
    num_grip_cutouts,     // number of finger grip cutouts     (default: 20)
    grip_cutout_diam,     // diameter of each grip cutout      (default: 4)
    cutout_radius_adj     // outward offset of cutout centres  (default: 1)
);

The screwhead_facetoface parameter corresponds to the face-to-face dimension s in DIN 933. The knob is designed to capture the bolt head in the base recess with the shaft passing through -- the hex recess feature is still under development.

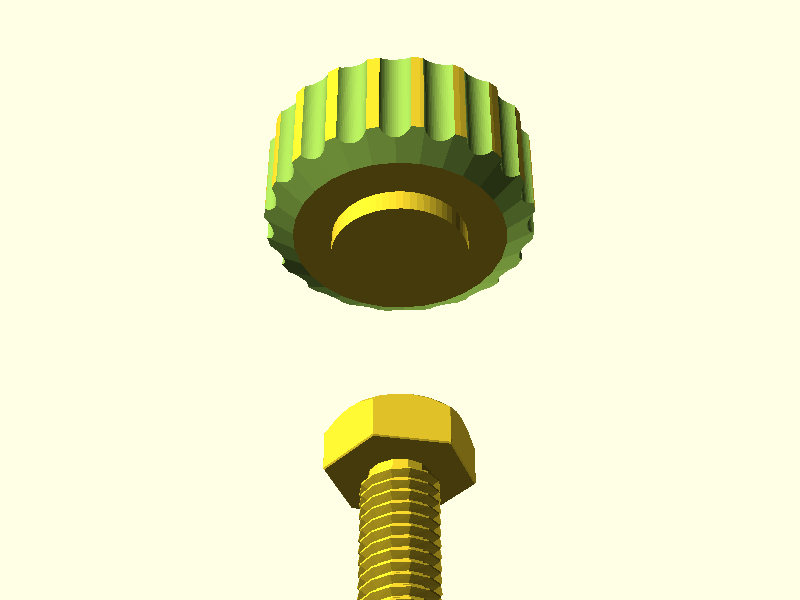

Hex knob underside with M8 hex bolt ready to insert

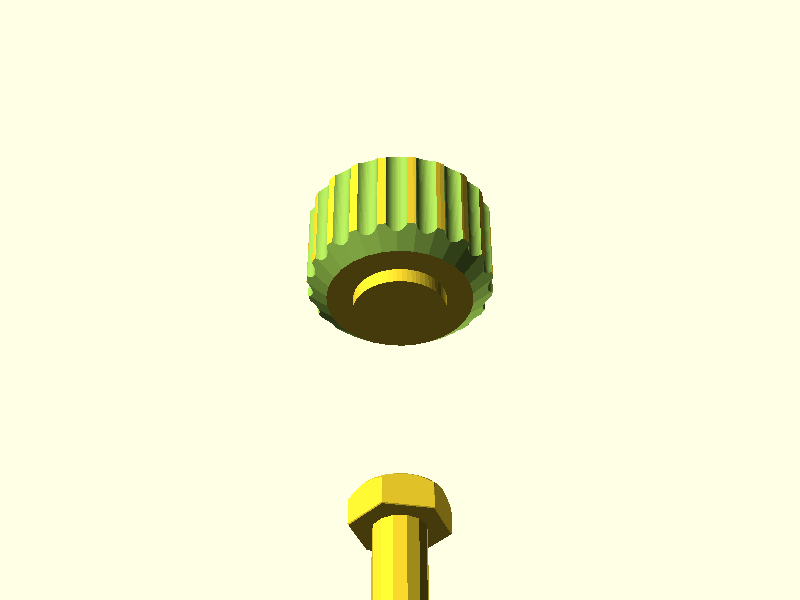

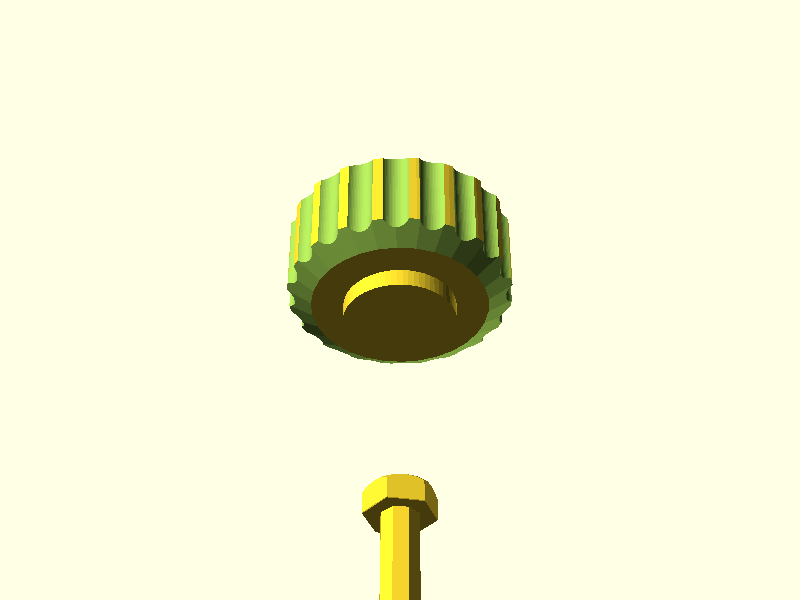

Default hex knob Large hex knob
Default hex knob -- 30mm diameter, 15mm tall Large hex knob -- 45mm diameter, 20mm tall

Implementation Notes

The knob() geometry is built from 2D profiles rotated with rotate_extrude(). Chamfers are cut using difference() against polygon shapes. Grip cutouts are placed by a helper module rotate_on_circle() that distributes cylinders at equal angular intervals around the perimeter using sin()/cos() positioning.

The source is on GitHub at morganp/parametric-knob-maker.
